Camera Monitoring Systems

Pana-Pacific Website

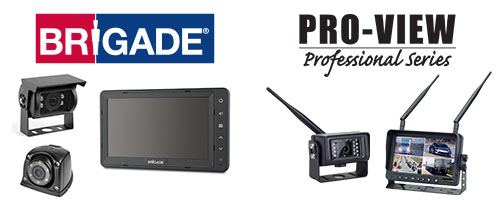

Product Highlights

Wired Camera Monitor Systems

Camera monitor systems can help eliminate vehicle blind spots to prevent collisions. Cameras are available to cover the rear, sides and front blind spots and to monitor vehicle-specific functions. Multiple camera images can be viewed on a single in-cab monitor simultaneously. Monitors can display camera views by driver preference and/or by vehicle operation (i.e. an engaged turn signal switches the monitor to display a side view camera).

Wireless Camera Monitor Systems

Wireless camera monitor systems provide drivers access to the same visibility as the wired systems without the need for cable(s) between camera(s) and the monitor. The wireless antennas allow for unobtrusive installation without compromising picture quality.

Top Movers - Brigade

PART NUMBERDESCRIPTIONCAMERADISPLAYACCESSORYWIREDWIRELESSDIMENSIONS
VBV-701CBRIGADE SELECT REAR/FRONT VIEW CAMERAX  XX3.2"W x 3.0"H x 2.8"D
VBV-301CBRIGADE COMPACT FLUSH-MOUNT EYEBALL CAMERA WITH MIRROR VIEWX  XX2.2"W x 1.7"H x 2.8"D
VBV-770FMBRIGADE 7" DIGITAL LCD SELECT MONITOR FOR UP TO 4 CAMERA INPUTS X XX7.2"W x 4.8"H x 1.0"D
VBV-750MBRIGADE 5" DIGITAL LCD SELECT MONITOR FOR UP TO 3 CAMERA INPUTS X XX5.9"W x 3.9"H x 0.8"D
VBV-L410BRIGADE SELECT 33' CAMERA CABLE TO CONNECT TO MONITOR  XX 33' L
VBV-L420BRIGADE SELECT 66' CAMERA CABLE TO CONNECT TO MONITOR  XX 66' L
DW-1001-RXBRIGADE DIGITAL WIRELESS RECEIVER FOR CONNECTING IMAGES TO MONITOR    X4.4"W x 4.8"H x 1.2"D
DW-1001-TXBRIGADE DIGITAL WIRELESS TRANSMITTER FOR CONNECTING IMAGES TO MONITOR    X4.4"W x 4.8"H x 1.2"D

General Product Information - Brigade

Monitors

Brigade in-cab monitors are a vital part of the safety solution, giving the driver essential information about the vehicle's surroundings. Whether the customer needs an entry-level reversing camera system, or a full mobile digital recording solution with 360-degree viewing and recording, Brigade has a solution. With single to multiple camera inputs and auto-triggers, Brigade monitors work on any application in any industry, regardless of the amount of camera views connected. Monitors range from compact 5" screens suitable for smaller commercial vehicles or where cab space is limited, to 10.5" suitable for larger heavy-duty equipment or where permanent multiple images are required. Brigade's range of monitors include models with the following features:

  • Built-in image viewing options: single view, split view, triple view, quad view, and picture-in-picture view
  • Mirror and normal image switch
  • Waterproof
  • 12-24Vdc flexible for a variety of vehicle & equipment applications
  • Audio capable and audio disabled
  • LED screens with anti-glare
  • On-screen distance markers
  • Anti-tamper buttons
  • Compatible with Brigade digital recorders and obstacle detection systems to maximize usage of a single in-cab display

Cameras

Rear View Camera - the rear blind spot is a huge problem regardless of the type or size of vehicle. In fact 90% of reversing accidents occur off public roads, and account for 1/6 of claims. Usage of reversing cameras can prevent costly collisions and assists drivers with safe and easier maneuvering.

Front View Camera - allow for drivers to more easily see objects in front of the vehicle to prevent accidents and avoidable vehicle damage.

Side View Camera - the nearside blind spot is accountable for many collisions. Most cyclist fatalities happen at low speeds, typically at road junctions and when pulling off from a stationary position. Sideswipe collisions on motorways are another common result of poor visibility. This problem is exacerbated when the driver position is on the wrong side in left-hand drive and right-hand drive traffic. The usage of side view cameras can remove nearside blind spots, and reduce the risk of sideswipe collisions when turning and changing lanes.

Brigade's range of cameras include models with the following features:

  • IP69K
  • Heated lens
  • Shutter
  • Flush-mount
  • Adjustable lens position
  • LEDs for ultra-low light performance
  • Mirror and/or normal view
  • Day/night sensor
  • Audio capable and audio disabled

Wireless Applications

Connecting a rear view camera system to a large vehicle can be timely and difficult due to the amount of cable required to ensure a connection. Brigade's new wireless system eliminates excess cabling, saving up to two hours fitment time and removes the need for additional retractable coiled cables on articulated vehicles. The wireless technology gives almost instantaneous pictures (camera to monitor has a 200 millisecond latency), and is not affected by electrical interference from other vehicles or machinery. The camera image is sent to the monitor via a transmitter and receiver, and once paired, the wireless link is secure. The system also boasts a re-pairing function, which allows the receiver to be linked to a different transmitter making interchanging trailers possible for drop and hook applications.

Top Movers Parts - ProView

PART NUMBERDESCRIPTIONCAMERADISPLAYCAMERA+DISPLAY KITWIREDWIRELESS
CAM175-W120-DEGREE MULTIVIEW COLOR CMOS CAMERA WITH MOUNT X   X
M100-W7" COLOR TFT-LCD MONITOR WITH UP TO 2 CAMERA INPUTS X  X
M400-W7" COLOR TFT-LCD MONITOR WITH UP TO 4 CAMERA INPUTS X  X
MCS-10PP7" COLOR LCD MONITOR, REAR VIEW COLOR CMOS CAMERA, & 35' CABLE  XX
MCS-10PP707" COLOR LCD MONITOR, REAR VIEW COLOR CMOS CAMERA, & 70' CABLE  XX
MCS-13PP70PREMIUM 7" COLOR LCD MONITOR, REAR VIEW COLOR CMOS CAMERA, & 70' CABLE  XX
C-SDR-CMOS120-DEGREE RIGHT SIDE VIEW COLOR CMOS CAMERA WITH MOUNTX  X

General Product Information - ProView

Monitors

ProView in-cab monitors are a vital part of the safety solution, giving the driver essential information about the vehicle's surroundings. ProView monitors work on any application in any industry, regardless of the amount of camera views connected (up to four available). Monitors range from compact 5" screens suitable for smaller commercial vehicles or where cab space is limited, to 7" suitable for larger heavy-duty equipment or where permanent multiple images are required. ProView's range of monitors include models with the following features:

  • Built-in image viewing options: single view, split view, triple view, and quad view
  • Mirror and normal image switch
  • Wide viewing angles
  • Built in speaker for audio
  • LCD screen
  • Full-function remote control
  • Flexible mounting options: pedestal, flush in-dash housing, U-bracket
  • Sun-shield
  • Tactile button controls
  • Reverse and turn signal automated camera switching

Cameras

Rear View Camera - the rear blind spot is a huge problem regardless of the type or size of vehicle. In fact 90% of reversing accidents occur off public roads, and account for 1/6 of claims. Usage of reversing cameras can prevent costly collisions and assists drivers with safe and easier maneuvering.

Front View Camera - allow for drivers to more easily see objects in front of the vehicle to prevent accidents and avoidable vehicle damage.

Side View Camera - the nearside blind spot is accountable for many collisions. Most cyclist fatalities happen at low speeds, typically at road junctions and when pulling off from a stationary position. Sideswipe collisions on motorways are another common result of poor visibility. This problem is exacerbated when the driver position is on the wrong side in left-hand drive and right-hand drive traffic. The usage of side view cameras can remove nearside blind spots, and reduce the risk of sideswipe collisions when turning and changing lanes.

ProView's range of monitors include models with the following features:

  • Waterproof
  • Built-in waterproof microphone
  • Multiple mounting options: adjustable & flush-mount
  • Sunshield
  • LEDs for ultra-low light performance
  • Mirror and/or normal view
  • Paint-able housing
  • Automatic electronic shutter control
  • Tethered antennas (wireless applications only)

Wireless Applications

Connecting a rear view camera system to a large vehicle can be timely and difficult due to the amount of cable required to ensure a connection. ProView's wireless system eliminates excess cabling, reducing installation time and removing the need for excess cabling. The wireless technology gives almost instantaneous pictures and can manage a reception distance of up to 150 feet in range. This reception distance may be less if obstacles or interference exist (i.e. metal or concrete buildings; cell interference; or microwave interference). The camera image is sent to the monitor via tethered antennas.



Warranty Information

Brigade Warranty

  • TWO YEARS OF WARRANTY COVERAGE ON CAMERAS, MONITORS, & CERTAIN ACCESSORIES

ProView Warranty

  • ONE YEAR OF WARRANTY COVERAGE
