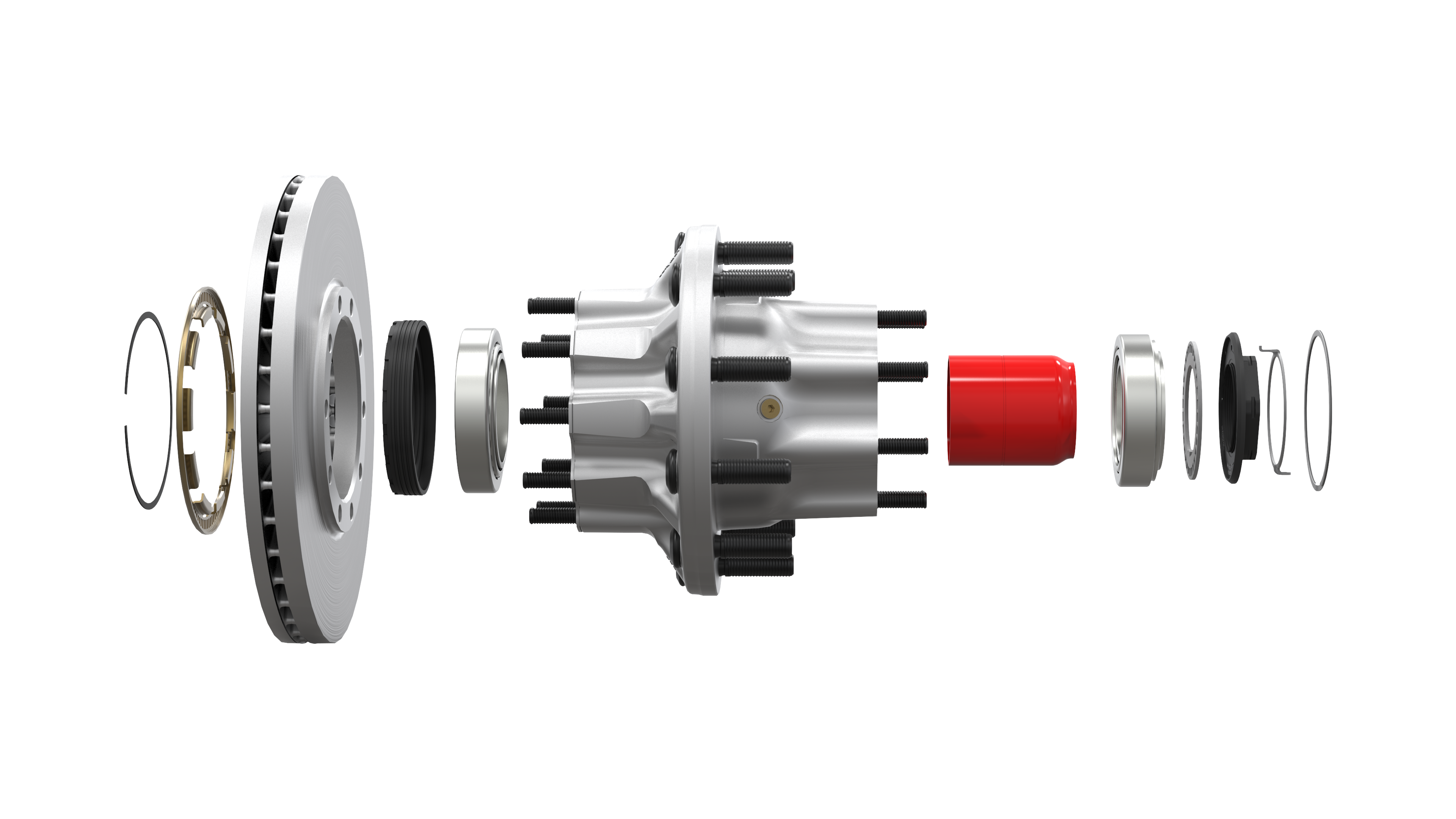

Exploded view of PreSet® Hub Assembly with PreSet Plus® Spindle Nut

Exploded view of PreSet® Hub Assembly with PreSet Plus® Spindle Nut

Product Highlights

Available in aluminum and iron

Pre-adjusted bearings for longer life and better performance

Precision-stamped ABS ring comes standard

Extended life seal protects internal components

Easy access fill hole means lubricants can be installed quickly and easily

Truck Hubs

Part NumberHub Flange Offset (in)Hub Load Rating (lbs)GAWR (lbs)Hub Material Wheel Stud Standout (in)Steel / Alum WheelsWheel StudWeight (lbs)Hub Cap BC (in)
CM 100822005.446,60013.2KAlum2.47Steel103193374.5
CM 100822015.446,60013.2KAlum2.92Alum10218837.64.5
CM 100822025.447,35014.6KAlum2.47Steel10747744.74.5
CM 100822035.447,35014.6KAlum2.92Alum10747945.54.5
CM 100822045.447,35014.6KIron2.6Steel1000140550.54.5
CM 100822055.447,35014.6KIron3.06Alum1000139951.24.5
CM 100822065.066,60013.2KAlum2.47Steel10319336.94.5
CM 100822075.066,60013.2KAlum2.92Alum10218837.54.5
CM 100822085.067,35014.6KAlum2.47Steel10203340.24.5
CM 100822095.067,35014.6KAlum2.97Alum102290414.5
CM 100822105.067,35014.6KIron2.6Steel1000140552.54.5
CM 100822115.067,35014.6KIron3.06Alum1000139953.24.5
CM 100822124.2910,00020KAlum2.65Steel10747854.95.56
CM 100822134.2910,00020KAlum3.27Alum1000133155.85.56
CM 100822144.2911,50023KIron2.76Steel1000139974.45.56
CM 100822154.2911,50023KIron3.3Alum1000530175.85.56
Part NumberHub Load Rating (lbs)GAWR (lbs)Inner Bearing CombinationOuter Bearing CombinationHub MaterialStud StandoutSteel / Alum WheelsWeight (lbs)Wheel Stud
CM 1008221611,50023K592A PS / 594A PS572 PS / 580 PSAlum2.94Steel50.010001329
CM 1008221611,50023K592A PS / 594A PS573 PS / 580 PSAlum3.81Alum51.410001331
CM 1008221813,00026K592A PS / 594A PS574 PS / 580 PSIron3.06Steel76.510018436
CM 1008221913,00026K592A PS / 594A PS575 PS / 580 PSIron3.97Alum77.910018435
CM 1008222011,50023k592A PS / 594A PS572 PS / 580 PSAlum2.94Steel49.610001329
CM 1008222111,50023k592A PS / 594A PS573 PS / 580 PSAlum3.81Alum51.010001331
CM 1008222213,00026k592A PS / 594A PS574 PS / 580 PSIron3.06Steel60.110018436
CM 1008222313,00026k592A PS / 594A PS572 PS / 580 PSIron3.97Alum61.510018435







Features and Benefits

Available in aluminum and iron

Pre-adjusted bearings for longer life and better performance

Precision-stamped ABS ring comes standard

Extended life seal protects internal components

Easy access fill hole means lubricants can be installed quickly and easily

Trailer Hubs

Part NumberType of HubPart Number, Bulk (24 ea.)TN / TPHub Load Rating (lbs)GAWR (lbs)Hub Material Wheel Stud Standout (in)Steel / Alum WheelsWheel StudWeight (lbs)
CM 10082224PreSet10082224BTN11,50023kAlum2.94Steel10218841.5
CM 10082225PreSet10082225BTN11,50023kAlum3.8Alum10219042.8
CM 10082226PreSet10082226BTN11,50023kIron3.17Steel1000139951.6
CM 10082227PreSet10082227BTN11,50023kIron4.08Alum1000140053
CM 10082228PreSet10082228BTP12,50025kAlum2.94Steel10229048.5
CM 10082229PreSet10082229BTP12,50025kAlum3.81Alum10229249.8
CM 10082230PreSet10082230BTP12,50025kIron3.17Steel1000139959.7
CM 10082231PreSet10082231BTP12,50025kIron4.08Alum1000140061.1
CM 10082249Conventional10082249BTN11,50023kAlum2.94Steel10218833
CM 10082250Conventional10082250BTN11,50023kAlum3.8Alum10219034
CM 10082251Conventional10082251BTN11,50023kIron3.17Steel1000139942.9
CM 10082252Conventional10082252BTN11,50023kIron4.08Alum1000140044.3
CM 10082253Conventional10082253BTP12,50025kAlum2.94Steel10229036.5
CM 10082254Conventional10082254BTP12,50025kAlum3.81Alum10229237.8
CM 10082255Conventional10082255BTP12,50025kIron3.17Steel1000139947.7
CM 10082256Conventional10082256BTP12,50025kIron4.08Alum1000140049.1

Product Highlights

ConMet PreSet/PreSet Plus Hub Rebuild Kits include OEM genuine components to rebuild medium-duty hubs

OEM genuine replacement wheel studs

OEM genuine ABS rings

General Product Information

Aftermarket PreSet Hub Assemblies

ConMet Aftermarket hub assemblies are the most advanced wheel ends on the market, featuring ConMet wheel seals and bearings. By replacing your wheel ends with genuine PreSet hubs, you get the following benefits:

  • Increased uptime
  • Reduced labor costs
  • Less potential for errors during installation
  • Reduced liability

Service Kits

Both ConMet and Alliance service kits enable technicians to return PreSet and PreSet Plus hubs to their factory condition with OEM genuine components.



Warranty Information

Aftermarket PreSet Hub Assembly Warranty

3 Years / 350,000 miles

ConMet Aftermarket Hub Component Warranties

PreSet/PreSet Plus Hub Rebuild Kits: 2 Years / 200,000 miles

Alliance Hub Component Warranties

Alliance Spindle Nuts: 1 Year / 100,000 miles

Alliance Seals: 1 Year / 100,000 miles

Alliance Hub Seal & Spacer Kits: 2 Years / 200,000 miles
