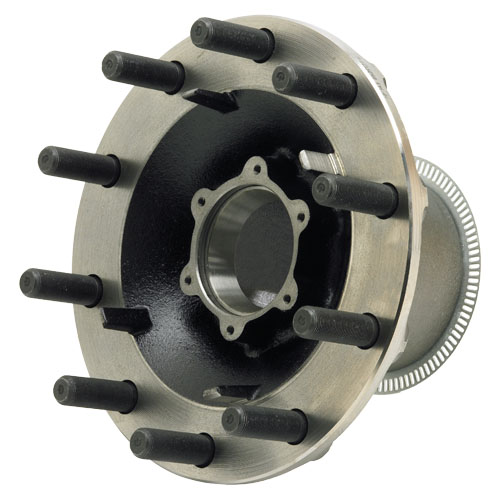

Gunite Ductile Iron Hubs

Your single source for industry leading wheel-end technology.

AWES Homepage

AWES Disc Wheel Hubs

AWES Hub & Drum Assemblies

Product Highlights

Gunite Ductilite ductile iron hubs are the lightest weight, non-ADI hubs available

Rugged dependability you need without the high cost of ADI or aluminum hubs

Lower maintenance costs and improved wheel-end performance

High Volume Gunite Hubs

Part NumberDescriptionWeightMount TypeBearing Cup SpacingDrive Stud or Hubcap BCDrive Stud or Hubcap Hole PatternPilot DiameterDisc Wheel BCOverall Length
GUN HR931SKRear Gen 3.5 Hub Sub-Assy - SAE Long R Axle - HPM41.23Outboard4.317(8) .62-118.7811.259.99
GUN HF839KFront Hub Sub-Assy - SAE FC Axle62Inboard2.923.62(4) .31-18010.826.11
GUN HF805KFront Hub Sub-Assy - SAE FL Axle54Outboard3.025.5(6) .31-188.7811.257.47
GUN HF838KFront Hub Sub-Assy - SAE FC Axle61Inboard2.923.62(4) .31-18011.256.11
GUN HF820KFront Hub Sub-Assy - Dana I-80 Axle32.39Outboard2.923.62(4) .31-188.7811.256.11
GUN HF897KFront Hub Sub-Assy - SAE FC Axle62Inboard2.923.62(4) .31-18010.826.11
GUN HF770S2Front Hub Sub-Assy - SAE FF Axle41.61Outboard3.384.5(6) .31-188.7811.256.24
GUN HF791KFront Hub Sub-Assy - SAE FF Axle55Inboard3.385.5(6) .31-18011.256.75
GUN HF803KFront Hub Sub-Assy - SAE FF Axle35Outboard3.384.5(6) .31-188.7811.256.24
GUN HR931SK9Rear Gen 3.5 Hub Sub-Assy - SAE Long R Axle - HPM48.75Outboard4.317(8) .62-118.7811.259.99
GUN HR931SK8Rear Gen 3.5 Hub Sub-Assy - SAE Long R Axle - HPM50.16Outboard4.317(8) .62-118.7811.259.99
GUN HF928KFront Hub Sub-Assy - SAE FC Axle63Inboard2.923.62(4) .31-18010.826.11

General Product Information

Accuride Wheel End Solutions is the industry’s only single source capable of supplying a range of wheel-end components for commercial vehicle OEM, fleet and aftermarket customers. Accuride Wheel End Solutions consistently provides reliable products, responsive service and quick solutions. We’re a wheel-end products partner you can depend on for the success of your company.

Products

Product Search

Dealer Support

Accuride Sales Literature Resource Menu

Accuride Regional Sales Team Map

Warranty Information

Gunite Iron Hubs Warranty Info:

  • 3 Years Limited Warranty on Tru-Set Front/Steer and Rear/Drive hubs
  • Limited Warranty on industry standard hubs
