Meritor® GAFF® Polyurethane Undercarriage Components

Meritor now offers GAFF® polyurethane products, specifically designed for each application to increase the lifespan of the component. For over 35 years, GAFF’s highly engineered polyurethane compounds have met the varying demands of heavy duty undercarriages.

MeritorPartsXpress.com/Suspension/GAFF Components

Product Highlights

What Makes GAFF® Polyurethane Different?

In a single word it is more RESILIENT. It is substantially less affected by UV or chemical agents on the road which means the material doesn’t age compared to rubber components. High performance polyurethane is designed for the application to extend the uptime of the vehicle, in the harshest road conditions.

Benefit

  • Reduces maintenance costs and increases uptime by extending the life and replacement rate of undercarriage components

Feature

  • More durable and resilient compared to rubber based products

Top Movers - (GAFF Polyurethane Components)

Part #Part DescriptionApplication
TDA GAFF400741810 Carrier BearingVarious
TDA GAFF13626Haulmaax Bolster SpringHendrickson Haulmaax
TDA GAFF11545Hood GuideKenworth
TDA GAFF12014Load PadMack Camelback Suspension
TDA GAFF12039Load Pad KitMack Camelback Suspension
TDA GAFF12036Load Pad KitMack Camelback Suspension
TDA GAFF11540Motor MountKenworth
TDA GAFF12369Motor MountPeterbilt
TDA GAFF11089Motor Mount KitFreightliner
TDA GAFF34525Motor Mount KitInternational
TDA GAFF34510Motor Mount KitInternational
TDA GAFF11760Motor Mount KitKenworth
TDA GAFF11762Motor Mount KitKenworth
TDA GAFF12035Motor Mount KitMack
TDA GAFF12034Motor Mount KitMack
TDA GAFF11611Shifter BushingEaton Transmissions
TDA GAFF11083Spring Pin BushingFreightliner FAS II Suspension
TDA GAFF13628Suspension Pivot BushingHendrickson INTRAAX, Wide Bushing
TDA GAFF34563Torque Rod AssemblyInternational
TDA GAFF18860Torque Rod AssemblyVolvo
TDA GAFF13520Torque Rod BushingInternational Corprate Air Ride Z Spring, Kenworth Airglide, Mack Camelback Suspension
TDA GAFF11729Torque Rod BushingKenworth Airglide Suspension
TDA GAFF18455Wheel Chock, SmallVarious

GAFF® Polyurethane Undercarriage Components Portfolio

■ Bushing & bushing kits
■ Bolster & load springs
■ Torque arms
■ Center bearings
■ Motor mounts
■ Radiator mounts
■ Exhaust mounts
■ Hinge & hood components
■ Wheel chocks

Product Catalog and Literature

GAFF Polyurethane Undercarriage Components - SP2111 PDF format

Popular Part Numbers

Part Number Description OEM Part Number Group
TDA GAFF11739 TORQUE ROD BUSHING 800010, 1515966C1 Chalmers
TDA GAFF11740 LOAD SPRING 15002 Chalmers
TDA GAFF11081 TORQUE ROD ASSY 16-16749-002, 16-18972-000, 681-326-72-16 Freightliner
TDA GAFF11089 MOTOR MOUNT KIT BCD 27330-1, BCD 27330-2, BCD 288051 Freightliner
TDA GAFF11083 SPRING PIN BUSHING 16-18035-000, 16-16412-001 Freightliner,  International, Western Star
TDA GAFF13520 TORQUE ROD BUSHING 44695, 64400-002L, 1693066C1, 12L4-232 Hendrickson
TDA GAFF13594 SUSPENSION BUSHING S-26321,  S-20924,  S-20925 Hendrickson
TDA GAFF13601 BOLSTER SPRING 49377, 60879-000, 2501596C1 Hendrickson
TDA GAFF13607 BEAM END BUSHING KIT 34013-087L, 1697717C91, 50150 Hendrickson
TDA GAFF13628 SUSPENSION BUSHING S-24691, S-11613, C-3558 Hendrickson
TDA GAFF13721 BOLSTER SPRING PAIR 60879, 49377-000, 2506180C91 Hendrickson
TDA GAFF13722 BOLSTER SPRING KIT 60879, 641794, 49377-000, 60879-000 Hendrickson
TDA GAFF13743 SUSPENSION BUSHING KIT S-26321 Hendrickson
TDA GAFF13744 SUSPENSION BUSHING KIT S-24691 Hendrickson
TDA GAFF83520 EASY-MOUNT 44695, 64400-002L, 1693061C1, 02-227720 Hendrickson
TDA GAFF83596 EASY-MOUNT 34013-88L, 34013088 Hendrickson
TDA GAFF13626 BOLSTER SPRING KIT 64179-002, 64179-037 Hendrickson
TDA GAFF50073 Pivot Bushing Kit SRK1190-3, R-008839 Hendrickson / Watson
TDA GAFF34510 MOTOR MOUNT KIT 1664729C1, 1664726C2, 1664729C3, 1664730C5 International
TDA GAFF34525 MOTOR MOUNT KIT 1664729C1, 1664730C5, 20147772C2 International
TDA GAFF34526 MOTOR MOUNT KIT 1664723C2, 1664723C3, 1664724C2, 4C4Z6038A International
TDA GAFF34563 TORQUE ROD ASSY 3548381C1, 4C4Z4612AA, 3580088C1 International
TDA GAFF11540 MOTOR MOUNT K066-377, K066-391, D13-1001-1 Kenworth
TDA GAFF11545 HOOD GUIDE K179-528, K179D450, 70100 Kenworth
TDA GAFF11615 MOTOR MOUNT K066-404, K066-405, K066-406, K066-407 Kenworth
TDA GAFF11729 TORQUE ROD BUSHING 836940, 839310 Kenworth
TDA GAFF11753 SPRING PIN BUSHING B65-1006, B65-1017-001 Kenworth
TDA GAFF11760 MOTOR MOUNT KIT K066-377, K066-391, K066-421, D13-1001-1 Kenworth
TDA GAFF11792 TORQUE ROD ASSY C65-6009, C65-6002, M601-70NR Kenworth, Peterbilt
TDA GAFF12000 MOTOR MOUNT 20QL1175, 20QL1118A Mack
TDA GAFF12006 LOAD PAD 10QK365A, 25121508 Mack
TDA GAFF12010 LOAD PAD 10QK370, 25115012 Mack
TDA GAFF12014 LOAD PAD 10QK36C, 10QK36B, 25125064, 21036254 Mack
TDA GAFF12034 MOTOR MOUNT KIT 204SX216, 20QL1175, 20QL1118A Mack
TDA GAFF12035 MOTOR MOUNT KIT 204SX389 Mack
TDA GAFF12036 LOAD PAD KIT 10QK370, 25115012, 10QK36B, 21036254 Mack
TDA GAFF12039 LOAD PAD KIT 10QK365A, 25121508, 10QK36B, 21036254 Mack
TDA GAFF11517 FIFTH WHEEL BUSHING XB-0011-2 Miscellaneous
TDA GAFF11611 SHIFTER BUSHING KIT K3399, 85105720 Miscellaneous
TDA GAFF12365 HOOD LATCH 680-880-01-60, L56-0001 Miscellaneous
TDA GAFF18455 WHEEL CHOCK   Miscellaneous

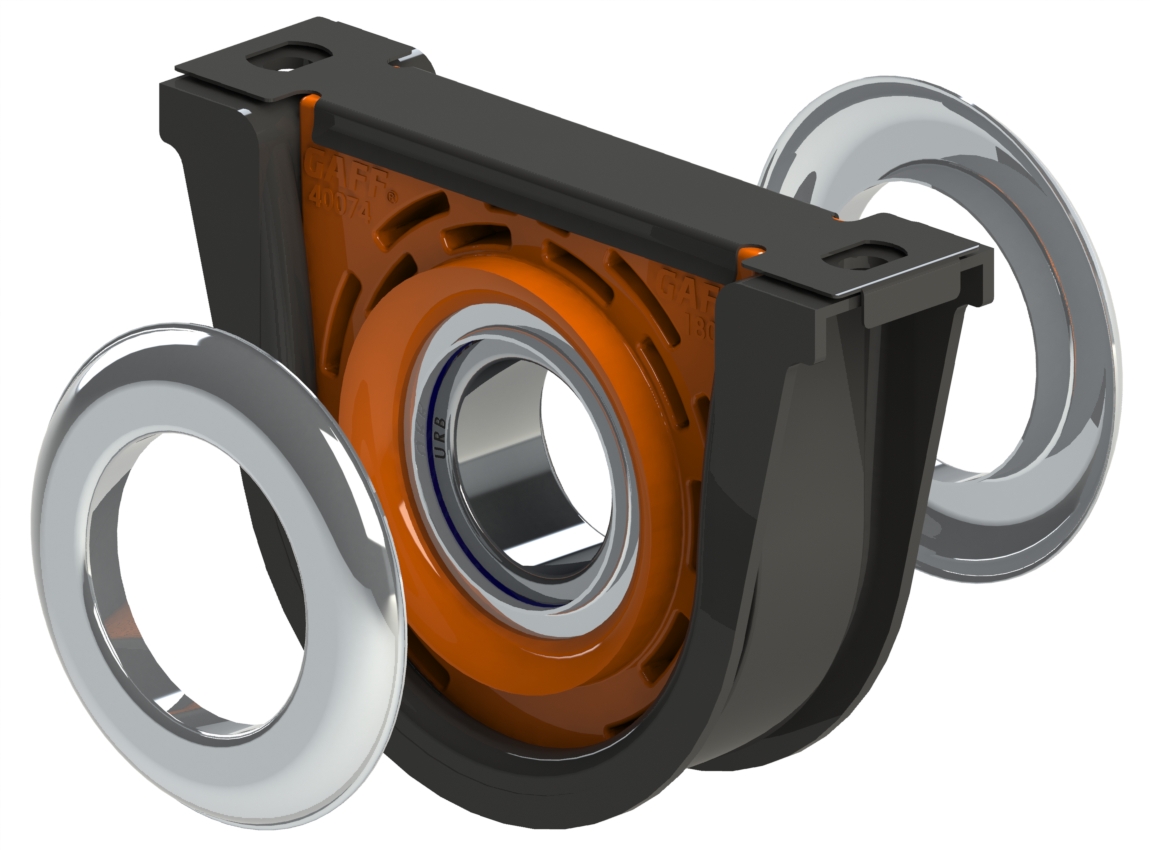

TDA GAFF40074 CARRIER BEARING 1810 Series, 2106611X, 210661-1X, D4TZ4800J Miscellaneous
TDA GAFF40075 CARRIER BEARING 1710 Series, 2101211X, 210121-1X, D4TZ4800G Miscellaneous
TDA GAFF11804 Radiator Kit N4751001, CB-2203-73 Peterbilt
TDA GAFF11811 Exhaust Mount Kit M13-6001, M13-1009, CB-2203-73 Peterbilt
TDA GAFF12357 EXHAUST MOUNT 14-14656, 14-B656 Peterbilt
TDA GAFF12361 SPRING BUSHING KIT 03AL1, 03AL01, 05-08968 Peterbilt
TDA GAFF12362 SPRING BUSHING KIT 03AL2, 03AL02, CB-2203-70 Peterbilt
TDA GAFF12364 HOOD MOUNT 13-04711, 20-08257, 20-8867 Peterbilt
TDA GAFF12369 MOTOR MOUNT CB2203-72, 13-03510 Peterbilt
TDA GAFF12414 Hood Mount Kit 13-04154, 13-04164 Peterbilt
TDA GAFF34554 TORQUE ROD ASSY 03-04059, C65-6013 Peterbilt
TDA GAFF10075 MOTOR MOUNT DOHZ6068B, 507569C91, 12004-0007 International/Ford/Volvo
TDA GAFF18860 TORQUE ROD ASSY 30SQ4525, 3187322, 35801-0068 Volvo

Warranty Information

Standard Meritor Aftermarket Warranty.

We warrant all new parts for one year from date of shipment to the buyer against defective material or workmanship (but not against damage caused by accident, abuse or improper installation, maintenance or repair) when such parts are used on vehicles the specifications of which have been approved by our Engineering Department.

As the exclusive remedy under this warranty, we will, at our option, repair or replace such parts free of charge, or take back the nonconforming parts and refund the monies paid by buyer for such parts, if found on examination by us to be nonconforming and if any necessary return charges are prepaid.

If it is necessary to return any parts under this warranty, buyer agrees not to make any deduction on account thereof from remittances on current accounts while claims are in the process of disposition. Any expense incurred without our consent for repairs or replacement will not be allowed.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE. IN NO EVENT SHALL SELLER BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

Only Meritor-branded products, including genuine Meritor and its affiliated brands, are covered by this aftermarket parts warranty.
