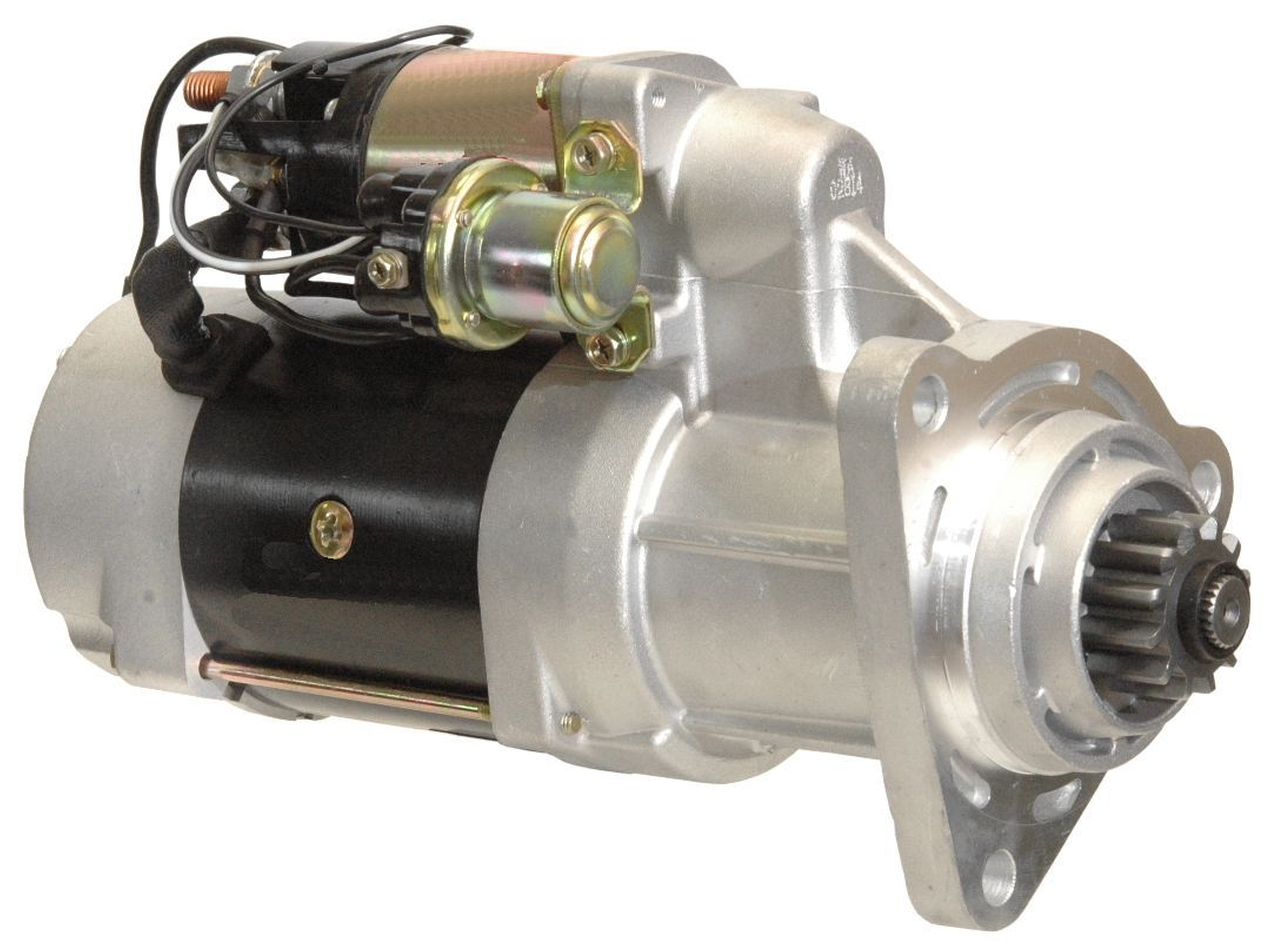

ALLIANCE HEAVY-DUTY STARTERS

General Product Information

Alliance starters are designed for customers who demand reliability and performance. Alliance premium remanufactured starters are designed to install easily with OE fit and function to provide cranking performance you can count on.
Alliance remanufactured starters meet or exceed OE standards because they’re remanufactured using processes similar to those used by the Original Equipment supplier of new starters.
Components are gauged, sorted, tested and renewed to OE-quality specifications, and vital parts are replaced with new ones where needed. Every component and part must meet strict Alliance standards.
Scheduled laboratory testing of starters from the assembly line includes loading the starter to an OE-quality specification. Instead of a “one-size-fits-all” approach, our test engineers ensure that each starter model is tested with the load specification for its particular applications.

Alliance remanufactured starters meet or exceed OE Standards - these are remanufactured with in-process inspections/tests throughout the production process
Component parts are gauged, sorted, tested while vital parts are replaced 100% NEW
Starter bushings, brushes and brush springs are replaced with New
Field coils are inspected and tested for insulation weakness/leakage and wrapped for solid insulation
Solenoids are electronically tested for amperage for Hold-in and Pull-in current to meet or exceed OE specifications or replaced with new
Armatures are cleaned, inspected, tested for insulation leakage, commutators machined/polished and checked for run-out
All starter units are tested to measure torque, power, speed and voltage, with reports enclosed with the product.

Part Number	Description 1	OE P/N	Application Information
ABP N15R 39MT11T1	STARTER RX 12V 7.3KW 11T w/Rotatable Mount	8200308	Detroit Series 60, Cat C9-C15, Cummins ISX, ISM, Mack E7
ABP N15R MOD312T1	STARTER RX 12V 7.3KW 12T-MOD 3-Rotatable Mount	8200434	Detroit DD13/15/16 2015 and older
ABP N15R MOD311T1	STARTER RX 12V 7.3KW 11T - 42mm Gear	8201004	Detroit DD13/15/16 2016 and up
ABP N15R 38MT10T1	STARTER RX 12V 4.3KW 10T	8200077	Cummins ISB 6.7L & Paccar PX-7
ABP N15R 39MT12T1	STARTER RX 12V 7.3KW 12T w/ Rotatable Mount	8200433	Cummins ISC, ISL, Nav DT466, DT570, HT570, MaxxForce DT9 & DT10.
ABP N15R 38MT12T1	STARTER RX 12V 4.3KW 12T	8200005	Cummins ISC 8.3L, ISL 8.9L, Paccar PX-8 and 9, Nav DT466, 539, 570, MaxxForce 9-13, DT 7.6L.
ABP N15R 39MT12T2	STARTER RX 12V 7.3KW 12T 46mm Gear	8201100	Mack MP8, Volvo D13
ABP N15R 29MT10T1	STARTER NW 12V 3.3KW 10T	19011400	Cummins ISB, 5.9L, & 4BT 3.9L
ABP N15R 41MT12T1	STARTER RX DD 12V 5.0KW 12T w/OCP-off set opening	8200055	Cat C7 7.2L with 2000 Allison
ABP N15R 29MT10T2	STARTER RX 12V 3.3KW 10T	8200571	Cummins ISB 6.7L & Paccar PX-7

One (1 ) Year warranty on Re-manufactured Starters
