Meritor Driveline Components

Meritor U-Joints and Self-Aligning Center Bearings

MERITORPARTSXPRESS.COM/DRIVELINE

Meritor U-Joints

Meritor Center Bearings

Product Highlights

High-torque-rated models available for demanding applications, including heavy service and downspeeding

Four-bolt design for easy installation and service

Design features for extended u-joint life:

  • Triple lip seals protect against contaminants
  • Nylon thrust washers eliminate metal-to-metal contact, preventing wear

Environmentally "green", since the need to grease the driveline is completely eliminated

Premium support for Permalube solutions

Top Movers - Meritor U-Joints

As a leader in driveline technology, Meritor offers an extensive line of replacement u-joints for light medium- and heavy-duty applications. The Meritor RPL was the first permanently lubricated driveline in North America while our MXL is the only 100,000-mile lube interval replacement product for 10-Series drivelines. The full line of Meritor Genuine, Meritor, and Mach u-joints are qualified to the highest industry standards.

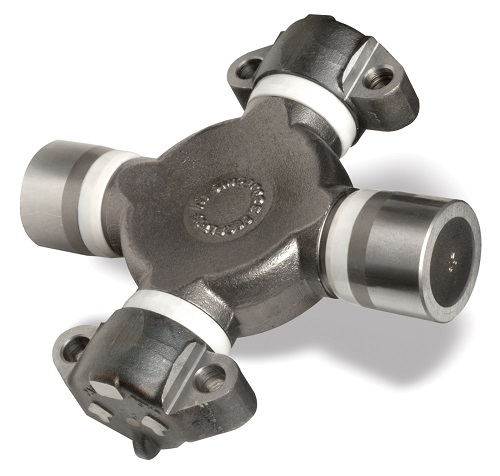

Meritor® Permalube RPL Series U-Joints

Column1Column2Column3Column4Column5
SeriesU-Joint RatingTube SizeApplicatorU-Joint
RPL35SD Severe Duty35,000 N.m5.204" x .236" wallMain DrivelineCP35RPLS
RPL3535,000 N.m4.69" x .230" wallMain DrivelineCP35RPLS
RPL25SD Severe Duty25,000 N.m4.69" x .230" wallMain DrivelineCP25RPLS1
RPL2525,000 N.m4.59" x .180" wallInter-axle DrivelineCP25RPLS1
RPL2020,000 N.m4.095" x .180" wallBothCP20RPLS

Top Movers - Meritor® XTended Lube MXL U-joints

Driveline SeriesMeritor GenuineBearing DiameterYoke Dim Across EarsYoke Dimension B/W Nibbs
1810 Half RoundM676X1.937"7.55"7.63"
1810 Full RoundM281X1.937"7.55"
1760 Half RoundM677X1.937"7.00"7.09"
1760 Full RoundM407X1.937"7.00"
1710 Half RoundM675X1.937"6.09"6.19"
1710 Full RoundM280X1.937"6.09"
1610 Half RoundM674X1.875"5.31"5.31"
1610 Full RoundM279X1.875"5.31"

Product Highlights

MXL U-joints are interchangeable with industry standard 10 Series products

MXL U-joints have triple-lip seals to keep lubricants in and contaminants out to ensure longer life

MXL is a higher quality driveline due to its extended lubrication intervals and advanced technology

MXL combines the robust features of Meritor RPL and RN technologies

General Product Information

Meritor is the driveline OE market share leader with more than 50% of the class 8 production share, and growing



Warranty Information

Driveline

Meritor® Aftermarket Driveline products include a standard one-year warranty. Meritor is also pleased to offer industry-leading extended warranties on a selection of its genuine Drivleine products in the aftermarket.

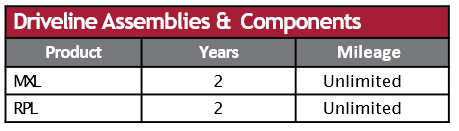

Product Years Mileage
MXL 2 Unlimited
RPL 2 Unlimited
All Other  1 Unlimited











Meritor® Center Bearings

Meritor is the OE driveline and driveline components leader. Meritor offers an extensive line of Meritor Genuine, Meritor, and Mach aftermarket replacement center bearings for heavy-, medium- and light-duty applications. Our complete center bearing portfolio allows you to choose the product that is the best match for your operation.

Meritor Genuine Self-Aligning Center Bearings

Column1Column2Column3Column4Column5Column6Column7Column8
Driveline Series Cushion TypeBearing DiameterHeight Mounting Holes (Center to Center)Competitive Part NumberMeritor Part Number
176N, 17N (Heavy Duty), 18N, 85WB, 92N Slotted 2.36” 3.38” 8.62” 210661-1X CB210661-1XSA
17N, 58WB, 72N, 82N, 85WB Slotted 1.968” 2.81” 7.62” 210121-1X CB210121-1XSA
176N, 17N (Heavy Duty), 18N, 85WB, 92N Solid 2.36” 3.38” 8.62” 210875-1X CB210875-1XSA
17N, 58WB, 72N, 82N, 85WB Solid 1.968” 2.81” 7.62” 310012-1X CB310012-1XSA

Product Highlights

Rubber cushion pivots in the bracket, allowing +/-5

Reduced risk of premature bearing wear due to misalignment

Provides a common mounting platform on the crossmember or mounting bracket. No shimming or bracket changes are necessary to achieve desired alignment

Genuine OE replacement product

Unique design protects the bearing against contamination without the use of external deflectors

Backward compatibility with previous Meritor or current competitive designs

Meritor self-aligning center bearings should not be replaced with traditional, non-self-aligning center bearings due to possible angularity issues.

General Product Information

  1. Improved balance specification reduces noise and vibration.
  2. Reduced risk of premature bearing wear due to misalignment.
  3. Common mounting platform on the crossmember or mounting bracket. No shimming or bracket changes are necessary to achieve desired alignment.
  4. Unique design protects the bearings from contamination without the use of external deflectors.
  5. Backward compatible with previous Meritor or current competitive designs.
  6. Slotted mounting holes provide more compliance for assembly by allowing for truck build tolerances.
  7. Patented Meritor design allows for three directions of bracket misalignment. For a comparison of the Meritor self-aligning center bearing vs. the competition, see the diagram below.
  8. +/- 5° of vertical angularity, +/- 4° degrees of horizontal angularity and +/- 1/4” fore and aft allowed, thanks to rubber cushion pivots in the bracket.

Warranty Information

Driveline

Meritor® Aftermarket Driveline products include a standard one-year warranty. Meritor is also pleased to offer industry-leading extended warranties on a selection of its genuine Drivleine products in the aftermarket.

Product Years Mileage
MXL 2 Unlimited
RPL 2 Unlimited
All Other  1 Unlimited
