Horton is the pioneer in the global fan drive industry and has been for over 65 years. It continues to innovate fan drive technologies for both OE and aftermarket that help products last longer, while reducing fuel consumption and noise.
Following expansions in Australia, Europe and Mexico, it expanded to Asia. It has sales offices in the U.S., Canada, Mexico and Germany and representatives in Russia, Korea, China, Japan, India, Australia, Columbia and Chile. We’re willing to go where you need us, to help you develop engine cooling solutions that are right for you and your application.

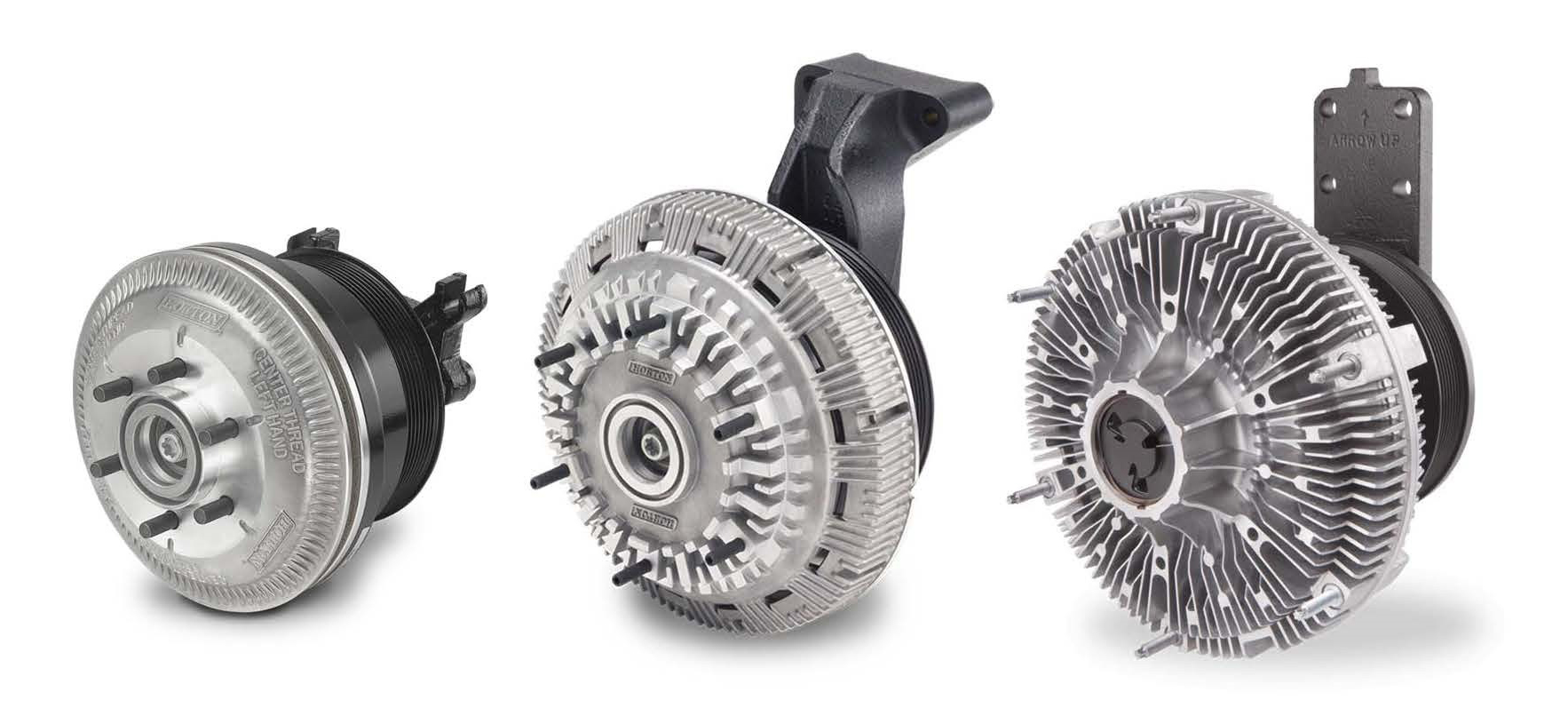

Product Features & Benefits
Premium DRAC bearing and long-wearing friction liner for maximum reliability and long life.
Low parts count for ease of installation and maintenance.
High torque capable of turning larger fans for a range of application.
Superior solution for some of the highest heat-under-hood applications.
Allows faster engine warmups in cold weather for operating efficiency.
Alternates eddy-current and spring-actuated cooling to moderate operating noise, increase available horsepower, conserve fuel and minimize radiator abrasion.
Features and Benefits
- Two-speed operation greatly reduces the number of full fan speed engagements for longer life and less noise.
- Ideal for vocational applications or vehicles with little to no ram air.
- Premium DRAC bearing and long-wearing friction liner for maximum reliability and long life.
- Low parts count for ease of installation and maintenance.
- High torque capable of turning larger fans for a range of application.
- Superior solution for some of the highest heat-under-hood applications.
- No friction liners or wear parts to replace provides for maintenance-free operation and maximum uptime
- Damage-resistant fan drive design with an unexposed control harness means no drive replacement if belt breaks
- Fan only engages at the amount needed for proper cooling results in low fuel consumption, less noise, more available engine horsepower, and optimized engine temperature

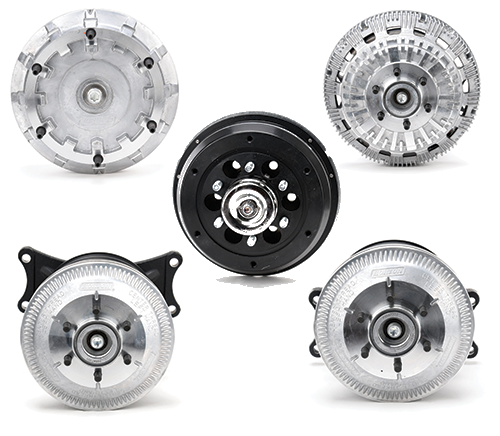

Top Movers - Horton DM Advantage On/Off Fan Drives
| Engine | Truck | Fan Center | DTNA Part Number* |
|---|---|---|---|
| DD5/DD8 | M2-106, 108SD, 114SD, WST 4700 | Low | HOR 99A4733 |
| DD5/DD8 | M2-106, 108SD, 114SD, WST 4700 | Low | HOR 99A4734 |
| DD5/DD8 | M2-106, 108SD, 114SD, WST 4700 | High | HOR 99A4733 |
| DD5/DD8 | M2-106, 108SD, 114SD, WST 4700 | High | HOR 99A4735 |
| DD13/DD15/DD16 | Cascadia-125, Coronado, 122SD, WST 4900-132 | 292 | HOR 99A7201 |
| DD13/DD15/DD16 | Cascadia-113, M2-112, 114SD, WST 4700, WST 4900-123 | 292 | HOR 99A7202 |
| DD13/DD15/DD16 | WST 4900 | 330 | HOR 99A7204 |
| DD13/DD15/DD16 | WST 4900 & 6900 | 495 | HOR 99A8655 |
| DD13/DD15/DD16 | New Cascadia | - | HOR 99A9653 |
| B6.7 | M2-106, 108SD | 260 | HOR 99A9649 |
| L9 | M2-106 | 280 | HOR 99A8652 |
| L9 | M2-112 | 280 | HOR 99A9581 |
| L9 | 108SD | 533 | HOR 99A8657 |
| L9 | 114SD, WST 4700 | 492 | HOR 99A8131 |
| ISL-Gas | M2-112 | 280 | HOR 99A8653 |
| ISL-Gas | 114SD | 492 | HOR 99A8132 |
| ISX12/ISX12-Gas | Cascadia-113, 114SD | 302 | HOR 99A9584 |
| ISX15/X15 | Cascadia-125, Coronado, 122SD, WST 4900 | 292 | HOR 99A8656 |
| ISX15/X15 | WST 4900 | 330 | HOR 99A9559 |
| ISX15/X15 | WST 4900 & 6900 | 508 | HOR 99A9560 |
| ISX15/X15 | New Cascadia | - | HOR 99A9654 |
Top Movers - Horton DM Advantage 2-speed Fan Drives
| Engine | Truck | Fan Center | DTNA Part Number* | Note |
|---|---|---|---|---|
| DD13/DD15/DD16 | Cascadia-125, Coronado, 122SD, WST 4900-132 | 292 | HOR 99A8262 | |
| DD13/DD15/DD16 | Cascadia-113, M2-112, 114SD, WST 4700, WST 4900-123 | 292 | HOR 99A8266 | |
| DD13/DD15/DD16 | M2-112V, 114SD, WST 4700, WST 4900* | 495 | HOR 98A8231 (2010-15) HOR 98A8246 (2016+) | *WST 4900 with DD13 only |
| DD13/DD15/DD16 | WST 4900 | 330 | HOR 99A8264 | |
| DD13/DD15/DD16 | WST 4900** & 6900 | 495 | HOR 99A8655-2 | **WST 4900 with DD15/16 only |
| ISX15/X15 | Cascadia-125, Coronado, 122SD, WST 4900 | 292 | HOR 99A9737 | |
| ISX15/X15 | WST 4900 | 330 | HOR 99A9559-2 | |
| ISX15/X15 | WST 4900 & 6900 | 508 | HOR 99A9740 | |
| B6.7 | M2-106, 108SD | 260 | HOR 99A8189 | If replacing an HT650 air engaged fan drive, the fan solenoid valve will need to be changed to a normally closed solenoid valve. |
| L9 | M2-106 | 280 | HOR 99A8652-2 | |
| L9 | M2-112 | 280 | HOR 99A9581-2 | |
| L9 | 108SD | 533 | HOR 99A8657-2 | |
| L9 | 114SD, WST 4700 | 492 | HOR 99A8131-2 | |
| ISL-Gas | M2-112 | 280 | HOR 99A8653-2 | |
| ISL-Gas | 114SD | 492 | HOR 99A8132-2 | |
| ISX12/ISX12-Gas | Cascadia-113, 114SD | 302 | HOR 99A9584-2 | |
Top Movers - Horton RCV250 Variable Speed Fan Drives
| Engine | Truck | Fan center | Fan Drive Part # | Install Kit Part # | Fan Part # |
|---|---|---|---|---|---|
| ISX15/X15 | Cascadia-125, Coronado, 122SD, WST 4900 | 292 | 9910034 | 995641 | 996813502 |
| ISX15/X15 | WST 4900 | 330 | 9910023 | 995641 | 996813502 |
| ISX15/X15 | WST 4900 & 6900 | 508 | 9910026 | 995641 | 996813502 |
| DD13/DD15/DD16 | Cascadia-125, Coronado, 122SD, WST 4900-132 | 292 | 9910031 (505 HP and above) | 995631 | 996813502 (505 HP and above) |
| DD13/DD15/DD16 | Cascadia-125, Coronado, 122SD, WST 4900-132 | 292 | 9910227 (under 505 HP) | 995631 | 993813502 (under 505 HP) |
| DD13/DD15/DD16 | Cascadia-113, M2-112, 114SD, WST 4700, WST 4900-123 | 292 | 9910032 (505 HP and above) | 995631 | 996813502 (505 HP and above) |
| DD13/DD15/DD16 | Cascadia-113, M2-112, 114SD, WST 4700, WST 4900-123 | 292 | 9910228 (under 505 HP) | 995631 | 993813502 (under 505 HP) |
| DD13/DD15/DD16 | WST 4900 | 330 | 9910033 | 995631 | 996813502 |
| DD13/DD15/DD16 | WST 4900 & 6900 | 495 | 9910022 | 995631 | 996813502 |
| DD13/DD15/DD16 | New Cascadia | - | 9910229 (under 505 HP) | 995631 | 993813502 |
Remanufactured option available for many fan drives. Replace the first 9 in the part number with a 7 to get the reman part number. (Ex: 99A8189 = 79A8189)
