Back-Up Alarms

Pana-Pacific Website

Product Highlights

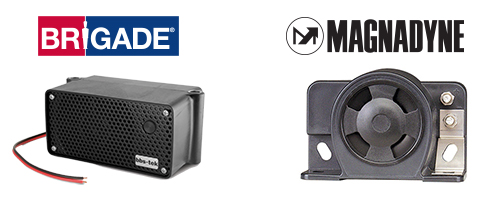

Alliance / Magnadyne

Waterproof Backup Warning Sirens

Magnadyne offers a line of cost-effective reverse warning alarms which alert using the universal warning tone. Units are designed with a waterproof housing to withstand even the harshest of environments, including epoxy embedded electronics. The alarm will sound when reverse lights are activated to immediately notify those nearby of the danger zone.

  • Conforms to SAE J994 safety standards
  • Projects a distinctive beep rate of one bee per second
  • Multiple power configurations - 12V or 24V
  • Variety of output volumes available
    • Static 97dB
    • Static 107dB
    • Static 112dB
    • Self-Adjusting 97dB-102dB
    • Self-Adjusting 87dB-112dB
  • Multiple installation options
    • wire leads
    • stainless steel terminals
    • stainless steel terminal + wire lead

Brigade

Patented White Sound Reversing and Warning Alarms

Instantly Locatable Sound: bbs-tek multi-frequency reversing and warning alarms use a wide range of White Sound frequencies. This enables the listener to instantly locate where and what direction the sound is coming from. The broadband sound also gives workers wearing hearing protection devices and people with hearing difficulties a better chance of hearing the alarm. The sound is considered directional and stays confined to the danger area to eliminate distraction of others nearby not in imminent danger.

Heard Only Where it Matters: bbs-tek reverse alarms create a 'shh-shh' sound to replace standard beeping alarms, which is gentle on the ear and dissipates quickly. This means the alarms do not cause noise-nuisance and thus eliminate noise complaints.

Certification: bbs-tek alarms are endorsed by the Noise Abatement Society and have been awarded the Quiet Mark for their environmental benefits. The alarms are also approved for night-time deliveries in areas of operation with noise ordinances.

Multiple Options: the bbs-tek line of alarms come in a multitude of options to best fit a customer's applications.

  • Static Sound - these alarms project sound at standardized volume level based on either medium duty (97 decibels) or heavy duty (107 decibels) configuration.
  • Self-Adjusting Smart Alarm - these alarms are capable of projecting sound within a predefined range of volume depending on the ambient noise level in the surround environment. The device will automatically and continuously adjust it's project level to be between 5 to 10dB above the current ambient noise level.
  • Special Applications - a variety of other options available in addition to the standard medium duty & heavy duty static and smart alarms referenced above:
    • Electric-Powered Forklifts
    • Speaking alarms for actual real-English spoken alerts - "Shh! Stand well clear, vehicle is reversing"
    • Speaking handbrake alarm - "Bleep! Hand brake not applied"
    • Speaking side turn alarm - "Shh! Caution. Truck turning  left"
    • Speaking attack alarm activated by a panic button and will repeat continuously until deactivated by a hidden switch.



Top Movers - Alliance & Magnadyne

PART NUMBERDESCRIPTIONPOWERDIMENSIONS (WxHxD)SELF-ADJUSTINGOUTPUT VOLUMESOUND TYPE
ABP/N55-BU2000C ALLIANCE EXTERNAL STATIC REVERSE WARNING ALARM12V4.0" x 2.7" x 1.6"NO97dBBEEP
BU2000CMAGNADYNE EXTERNAL STATIC REVERSE WARNING ALARM12V4.0" x 2.7" x 1.6"NO97dBBEEP
BU2000CW107MAGNADYNE EXTERNAL STATIC REVERSE WARNING ALARM 12V/24V4.0" x 2.7" x 1.6"NO107dBBEEP
BU2000CW112MAGNADYNE EXTERNAL STATIC REVERSE WARNING ALARM12V/24V4.0" x 2.7" x 1.6"NO112dBBEEP
BU2200C97MAGNADYNE EXTERNAL STATIC REVERSE WARNING ALARM12V4.0" x 2.7" x 1.6"NO97dBBEEP
BU3000C102AMAGNADYNE EXTERNAL SELF-ADJUSTING REVERSE WARNING ALARM12V/24V4.0" x 2.7" x 1.6"YES87dB -102dBBEEP

Top Movers - Brigade

PART NUMBERDESCRIPTIONPOWERDIMENSIONS (WxHxD)SELF-ADJUSTINGOUTPUT VOLUMESOUND TYPE
BBS107BRIGADE HEAVY DUTY STATIC SOUND BACK UP ALARM12V/24V6.8" x 3.1" x 3.7"NO107dBWHITE NOISE
BBS97BRIGADE MEDIUM DUTY STATIC SOUND BACK UP ALARM12V/24V4.1" x 2.5" x 1.5"NO97dBWHITE NOISE
SABBS107BRIGADE HEAVY DUTY SELF-ADJUSTING BACK UP ALARM12V/24V6.7" x 3.1" x 3.7"YES87dB - 107dBWHITE NOISE
SABBS97BRIGADE MEDIUM DUTY SELF-ADJUSTING STATIC BACK UP ALARM12V/24V5.0" x 3.0" x 2.5"YES77dB - 97dBWHITE NOISE

General Product Information

Back-up alarms allow drivers to maintain a safe environment around the vehicle by alerting of danger zones when reversing. The area directly behind a truck as well as a trailer can be a complete blindspot for drivers, making reversing-accidents some of the most horrendous. Back-Up alarms are simple solutions to implement to ensure the safety and well being of drivers and others. The hardware is easy and quick to install. Units are compact in size with universal mounting designs. They have very low current requirements which makes adding them onto electrical systems already loaded with other accessories a breeze!



Warranty Information

Alliance / Magnadyne Warranty

  • ONE YEAR OF WARRANTY COVERAGE

Brigade Warranty

  • LIFETIME WARRANTY

Sales & Training Resources
